North Production Line   1 comment

The Midwest/Standard refinery had two production lines that ran parallel to their respective stills. In all of these buildings, there were electric motors with large flywheels to pump the oil from still tank to still tank in order to heat the petroleum to varying degrees of temperature in order to produce different grades and products of oil; including gasoline, kerosene, motor oil, diesel fuel, and asphalt oil. The north production line and center bank of still foundations were incorporated into the U.S. Yttrium building during its construction in 1956. Unlike the south production line, the northern line was not a continuous building, it was made up of three different buildings. Each building served to help pump the oil for each of its still banks. Going west to east; the first building rests on the northwest corner of the LRCD property; is missing its west wall, has no roof, and has a tunnel that bisects it. The second and third buildings were joined together to provide a seamless transition for the yttrium operations and to provide additional enclosed storage for future use. These two buildings would receive the same green paint as the remainder of the building; the roofing would be replaced over the second building to match the transitional building/room. The rear building would receive a new roof and its east-facing wall would be replaced by a conventional garage door and facade.

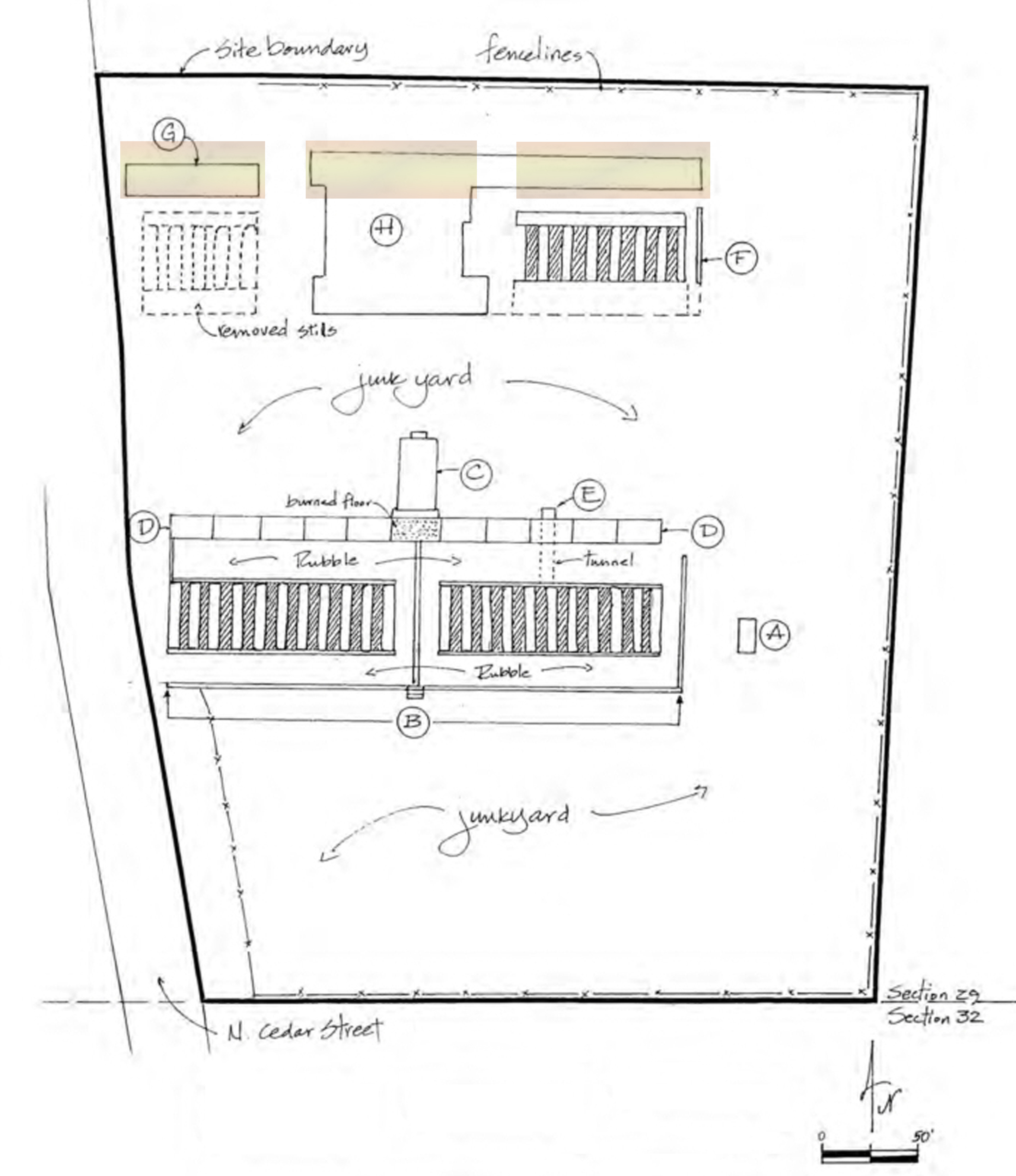

North Production Line, highlighted. (Courtesy LRCD)

North Production Line, highlighted. (Courtesy LRCD)

The historical images included here are not from the Laramie refinery, as the research has not revealed that any exist. The images of the machinery, related paraphernalia, and the quotes on the third image are from the Frank O. Prior Collection #6659, Box 3, Albums 1 – 3, American Heritage Center, University of Wyoming; and are of the refinery and electrical plant that was located in the Salt Creek Field in central Wyoming.

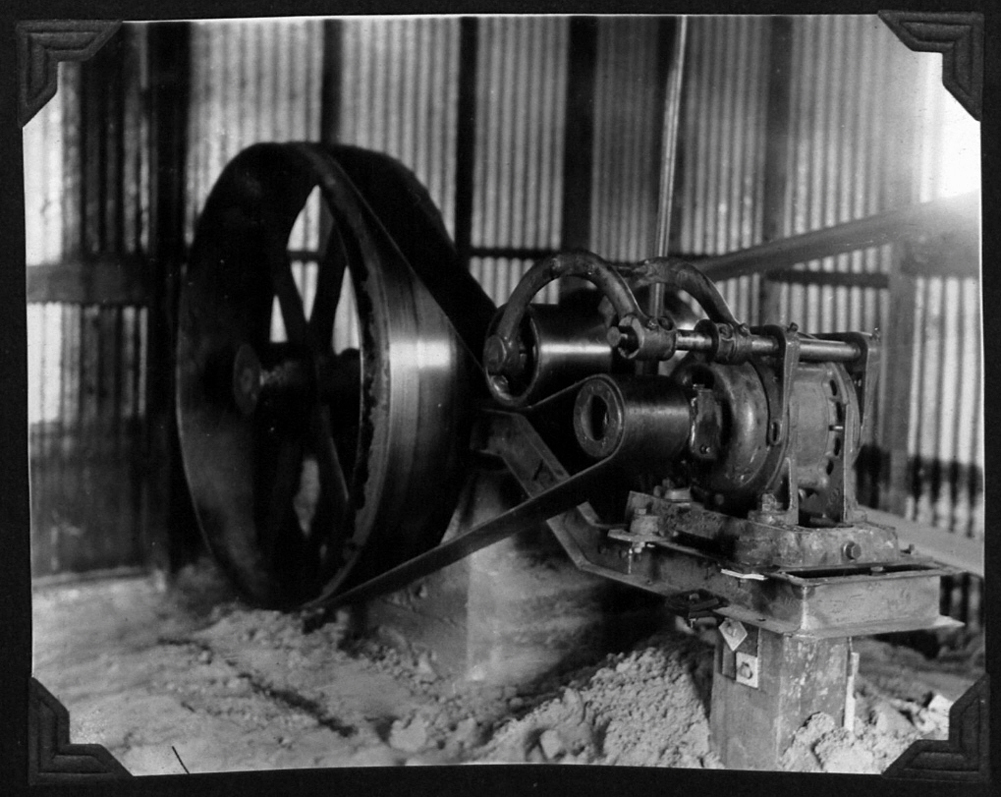

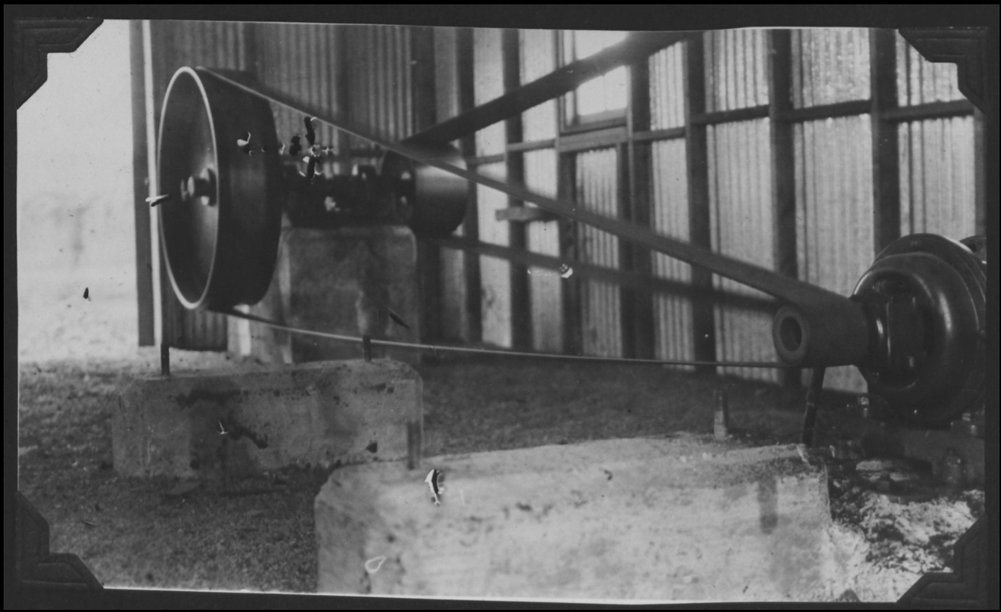

A typical motor and flywheel that would have been housed in the production line buildings.

A typical motor and flywheel that would have been housed in the production line buildings.

Another motor and fly wheel that would have been used inside of these production buildings. Note the concrete riser in the foreground. The western half of this production line have very few of these, if any. The last three buildings have these risers in them.

Another motor and fly wheel that would have been used inside of these production buildings. Note the concrete riser in the foreground. The eastern half of this production line have very few of these, if any. The first building has some of these left inside of it. The other two buildings have had these removed, leaving large portions of rough concrete in the floor.

The belts were made of "rawhide or fibre", and "belted motors {provided a} lower cost and less expensive" alternative to geared motors. Motors with belts were also quieter when operationing.

The belts were made of “rawhide or fibre”, and “belted motors {provided a} lower cost and less expensive” alternative to geared motors. Motors with belts were also quieter when operating.

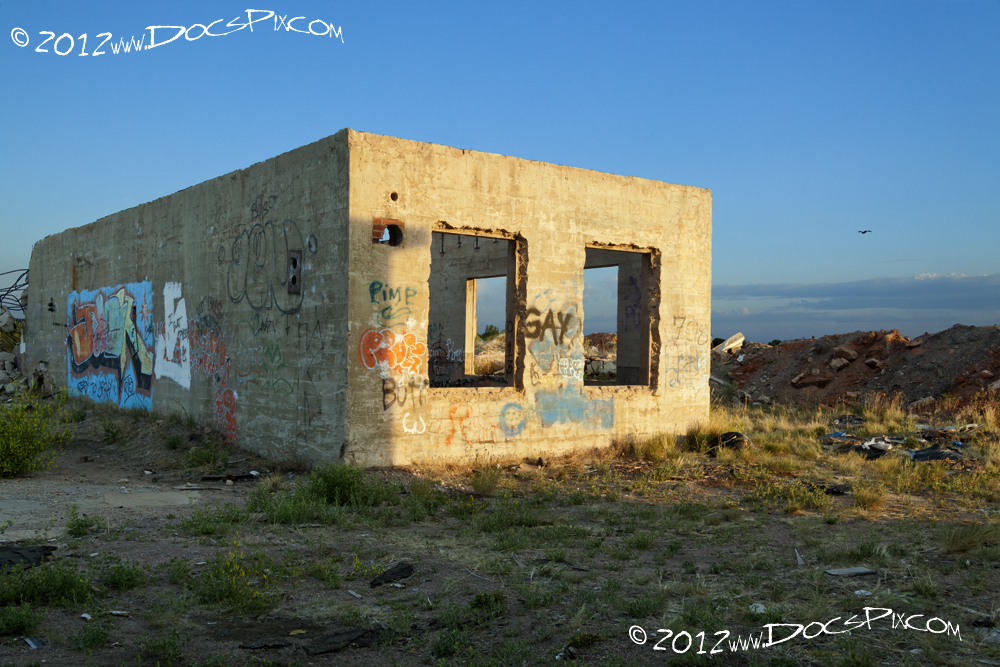

The west production building at sunrise.

The west production building at sunrise. All three of these buildings have an area in the upper wall that are either bricked in or have an opening for piping.

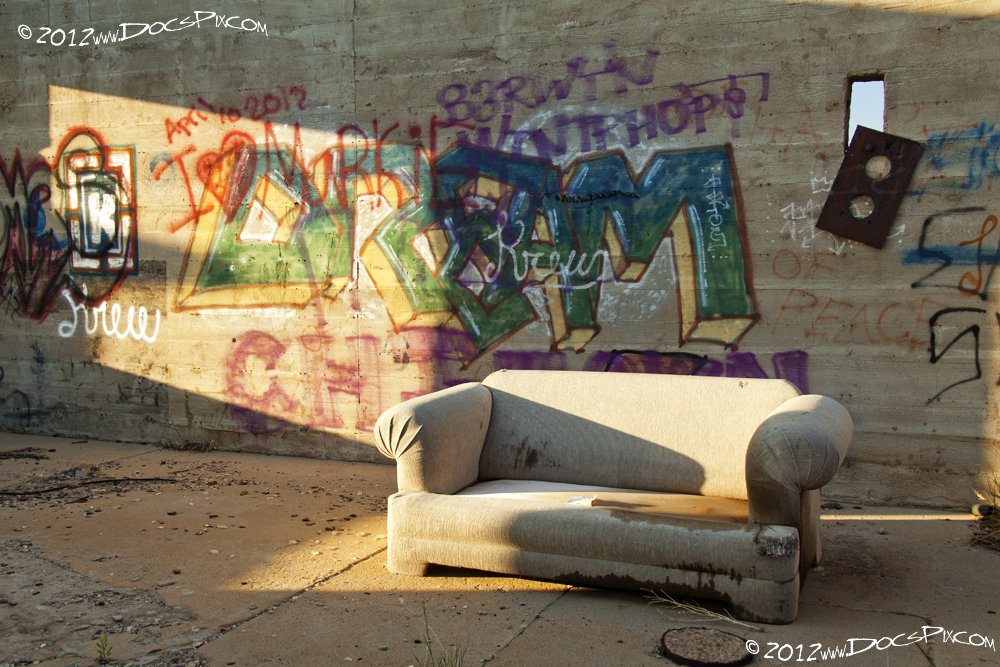

A view inside of the power house.

A view inside of the west production building. The pipe in the floor presumably was used to move large quantities of oil.

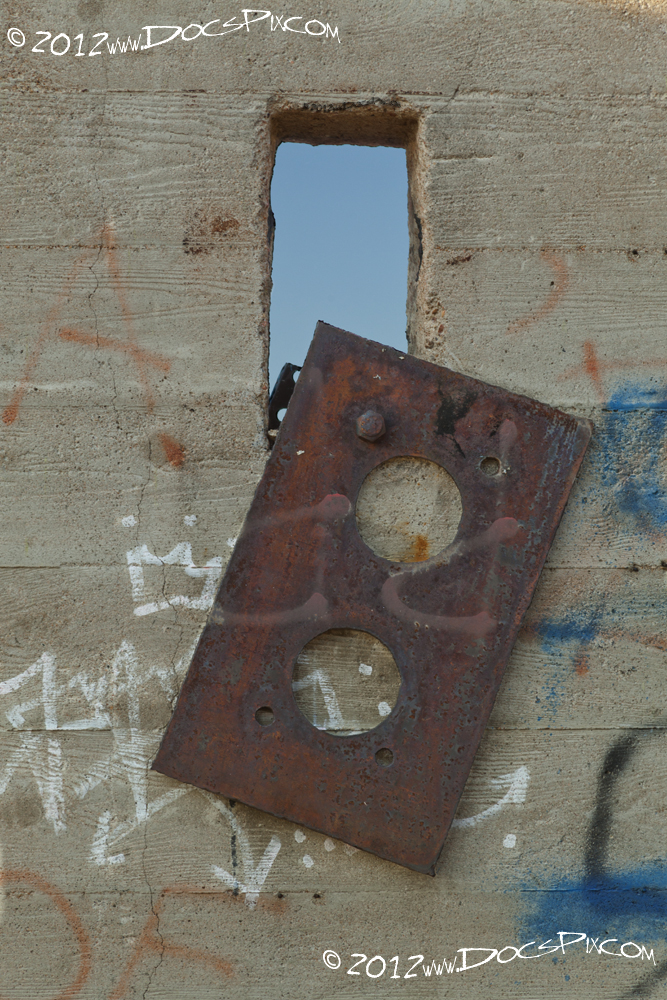

This steel plate would have been used as guide for pipes in and out of this building.

This steel plate would have been used as guide for pipes in and out of this building.

A view from the north side of the west production building.

A view from the north side of the west production building.

Goddess of nowhere.

Goddess of nowhere.

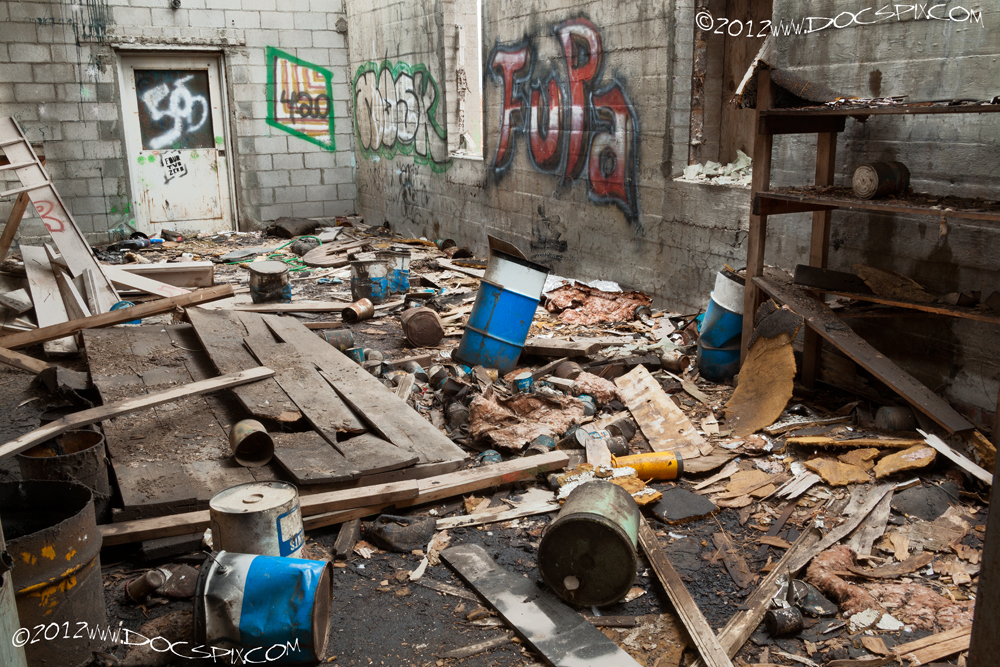

Inside the middle production building, looking west. Note the block wall on the left, and the poured concrete wall on the right.

Inside the middle production building, looking west. Note the block wall on the left, and the poured concrete wall on the right.

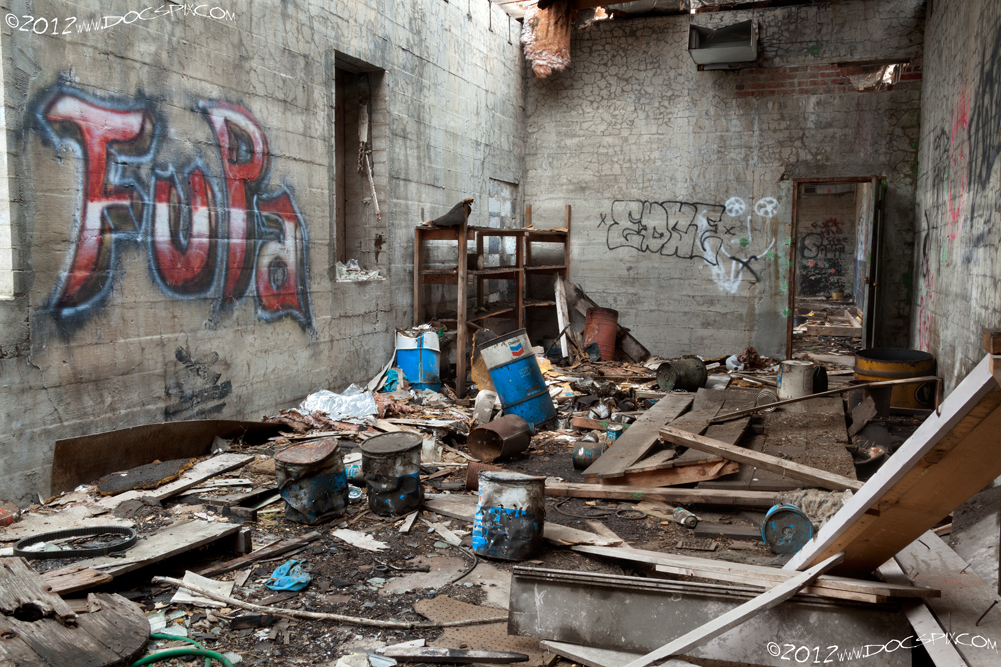

Another view of the middle building. The inner door was probably added during construction of the U.S. Yttrium building.

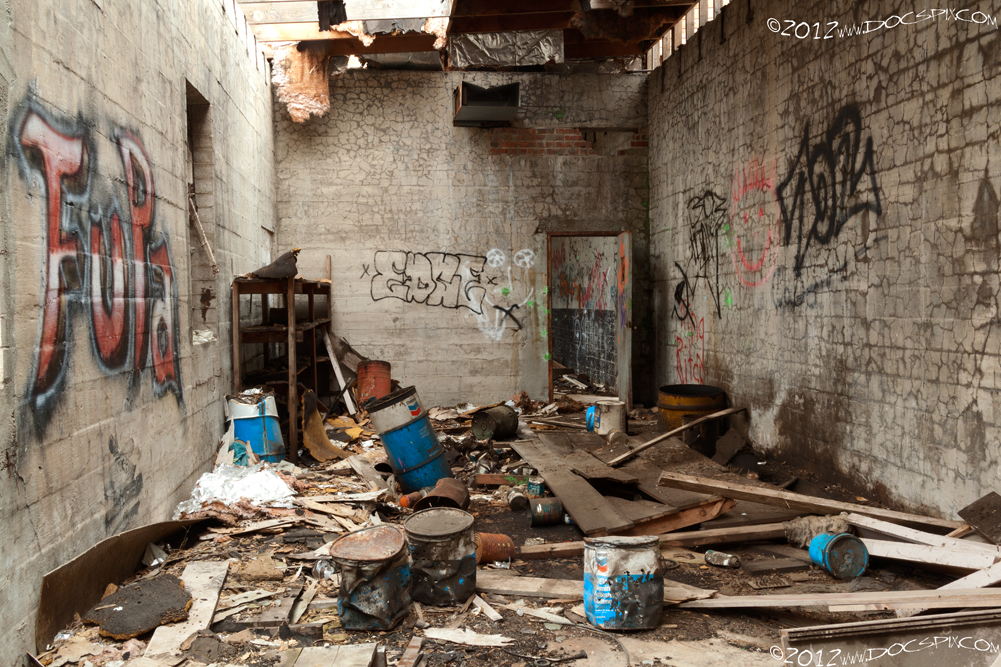

Looking east in the middle building. The inner door was probably added during construction of the U.S. Yttrium building.

Another view of the second production building.

Another view of the second production building.

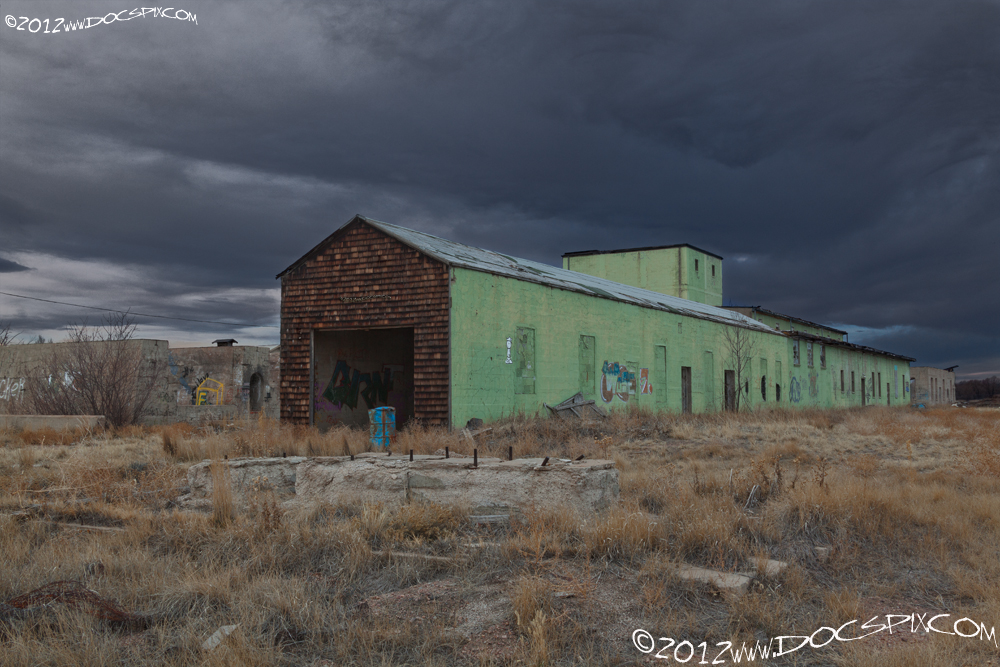

The north production line. The third building has a pitched roof, the second and transitional buildings have a flat roof. The transitional building has three windows higher than the others.

The north production line. The third building has a pitched roof, the second and transitional buildings have a flat roof. The transitional building has three windows higher than the others.

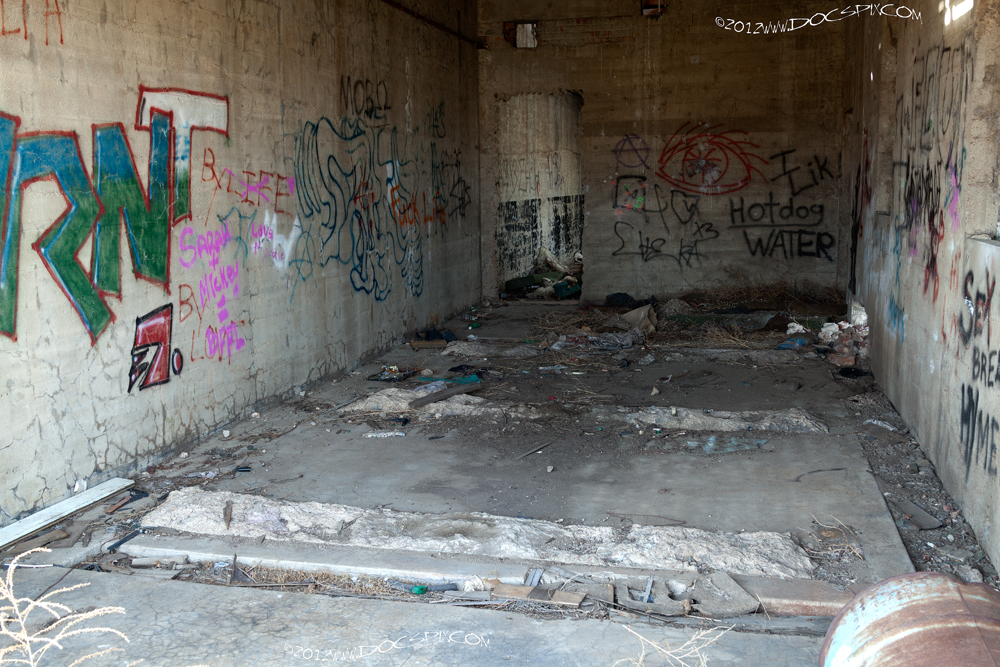

Looking through the garage door. Note the floor has three foundations that have been removed.

Looking through the garage door. Note the floor has three foundations that have been removed.

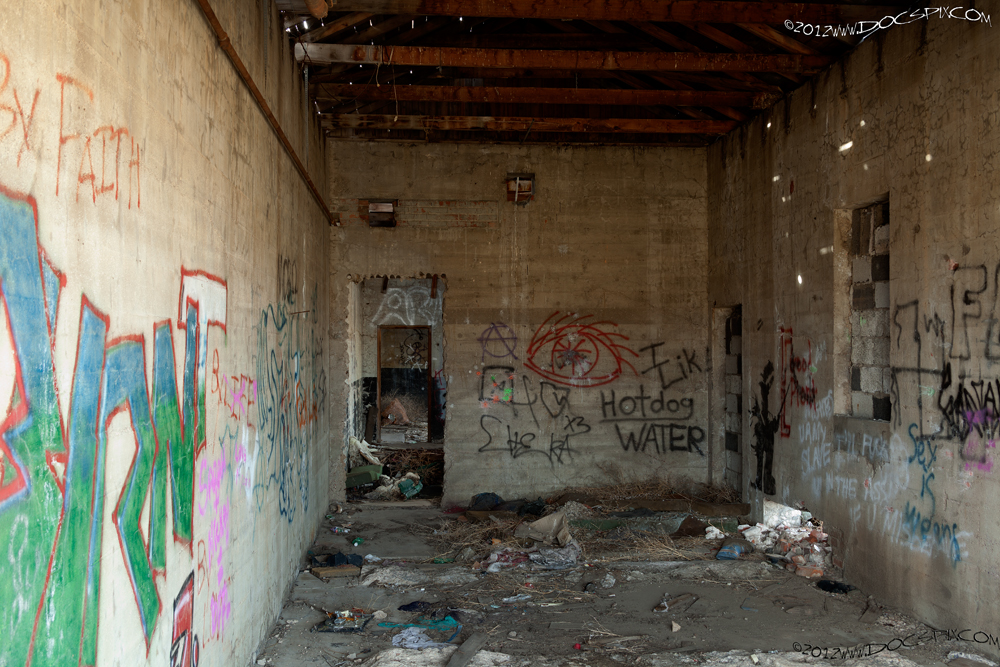

Looking through the garage along the south wall. The "door" was presumably added by one of the subsequent owners after Midwest.

Looking through the garage along the south wall. The “door” was presumably added by one of the subsequent owners after Midwest.

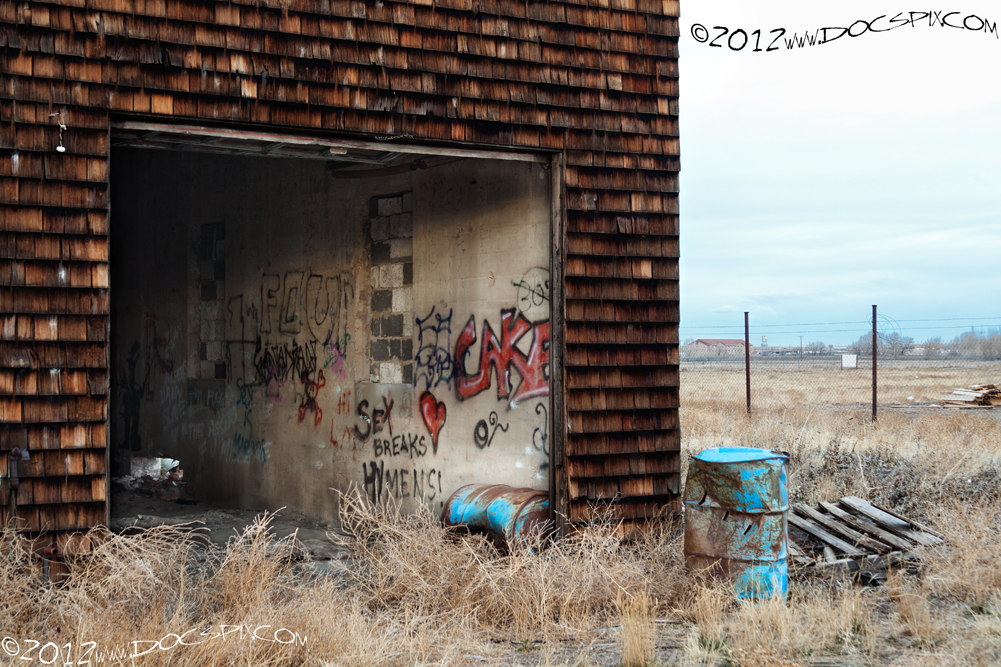

Detail of the garage door area.

Detail of the garage door area.

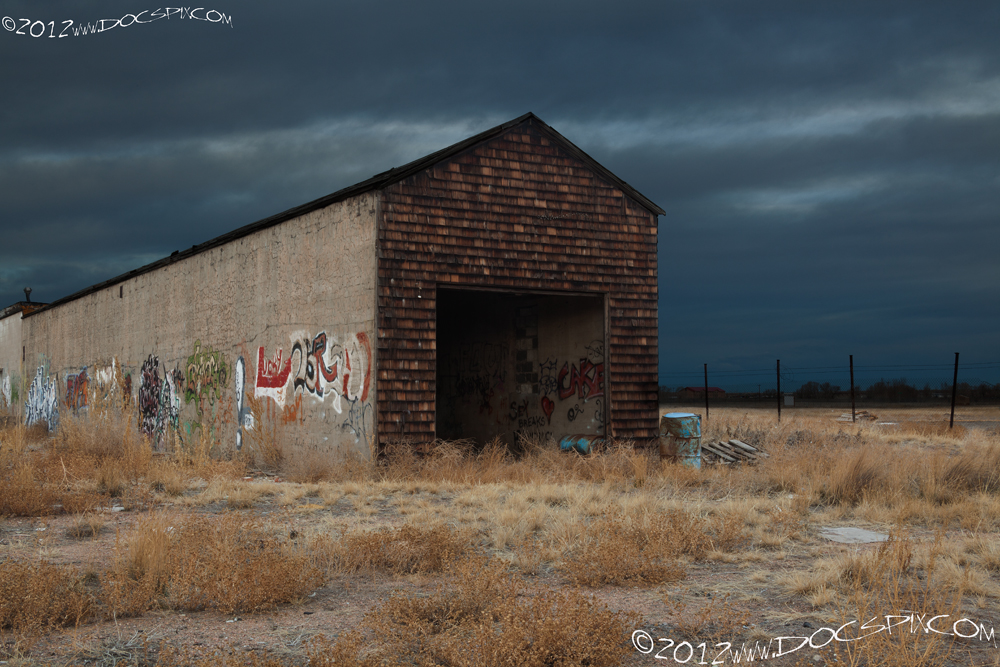

A view of the south side of the third building.

A view of the south side of the third building.

Posted January 27, 2013 by docthissen

One response to “North Production Line

Subscribe to comments with RSS.

  1. Belt-driven machinery was in fact quite loud. Advertisements in the various trade presses by companies like GE and Westinghouse for electric motors to replace line/shaft belt driven machinery often emphasized the reduction of the noise level (not for worker safety – but to improve supervision and direction).
